LQ084 Series LQ084S3LG12 LQ084S3LG11 LQ084S3LG03 LQ084S3LG02 LQ084S3LG01
Sharp LQ084S3LG12 Mechanical Features
| Panel Size : | 8.4 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 170.4×127.8 mm | 173.4×130.8 mm | 200×152 mm | 9.8 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | |
| Fixation : | Face mounting holes (4-Φ2.8) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | TBD | Antiglare, Hard coating (2H) |
Sharp LQ084S3LG12 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/80/80 (Typ.)(CR≥10) | 6 o'clock | 35 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 |
| Luminance Variation : | 1.33 (Max.)(5 points) |
Sharp LQ084S3LG12 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 300mA (Typ.) | 3.3V (Typ.) | - |
| Interface Features : | Position | Type | Interface |
| - | Connector | LVDS (1 ch, 6/8-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins |
Sharp LQ084S3LG12 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | - | - | 70K(Typ.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 53261-0871 | 1 pcs | 1.25 mm | 8 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 375mA (Typ.) | 11.2/12.0/12.6V (Min./Typ./Max.) | - |
LQ084S3LG12 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 200(W)×152(H)×9.8(D) mm, viewing area size of 173.4(W)×130.8(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, LQ084S3LG12 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
Product Tags:
|
|

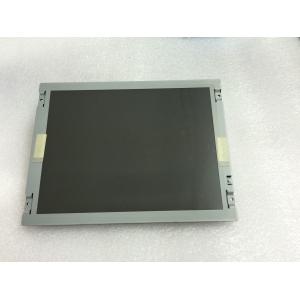

LQ084S3LG12 Sharp 8.4" LCM 800×600RGB 400cd/m² INDUSTRIAL LCD DISPLAY Images
|
